500CSF/500CSK
Back to Products
Rating
500CSF / 500CSK
- Rated voltage and blocking capacity
- AC500V - 10kA
DC500V - 10kA (L/R2ms) - Minimum block-off current
- AC/DC500V – 10 times the rated amperage
- Maximum arc voltage
- 2000V
500CSF
500CSK
PDF Download UL standard approved rating
- Rated voltage and blocking capacity
- Same as the standard rating.
CCC standard approved rating
- Rated voltage and blocking capacity
- When applying the standard to CCC standard approved items, use the fuse in the following rating.
AC400V-50kA
DC400V(L/R15ms)-50kA
Rated Voltage
500V
Rated Current
4～20A
Cylinder Size(Estimated)
φ6.4×31
Installation Method
Clipped / Board soldered
RoHS Order
◯
Standard Approved

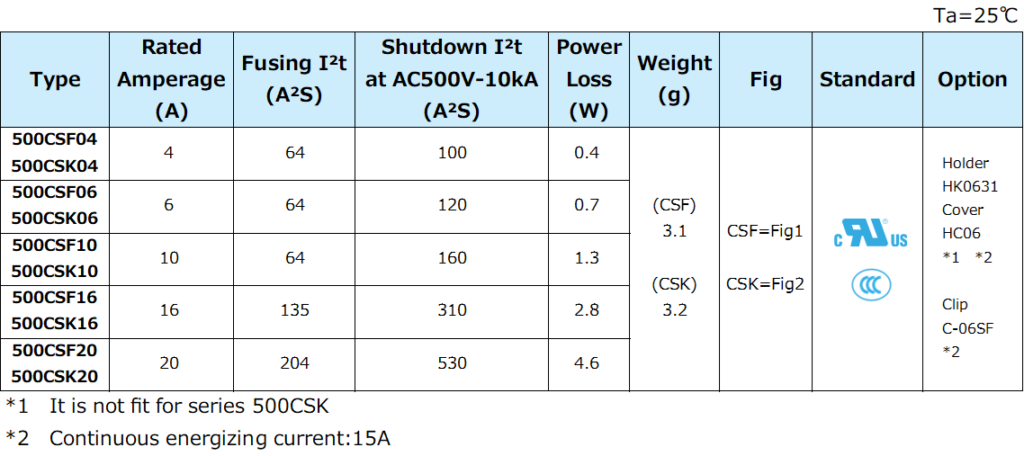

Specifications
Dimensions
500CSF <Fig1>
500CSK <Fig2>
※HK0631(option)
※C-06SF(option)

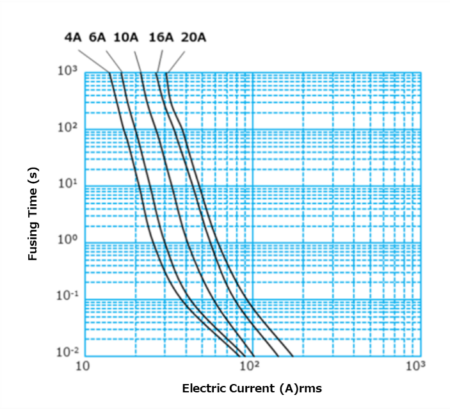

Fusing Characteristics

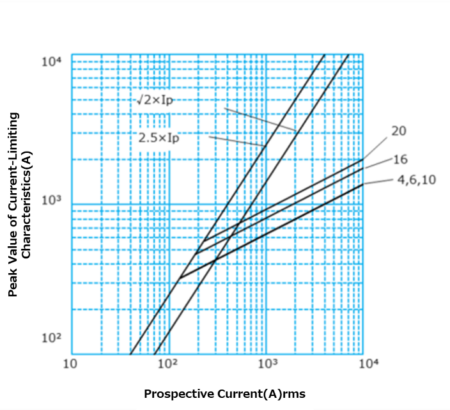

Current-Limiting Characteristics

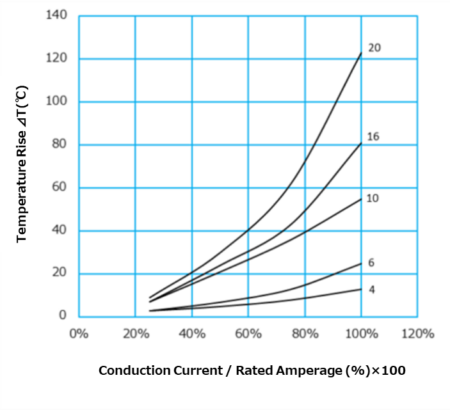

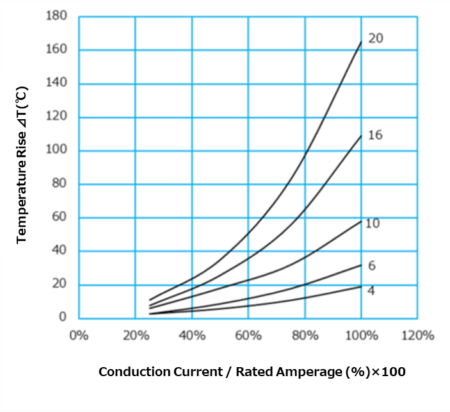

Temperature Rise
500CSF
500CSK

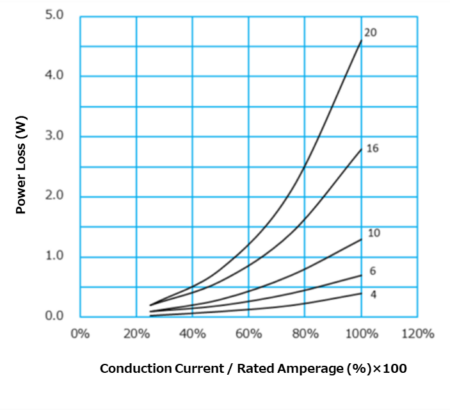

Power Loss
500CSF
500CSK

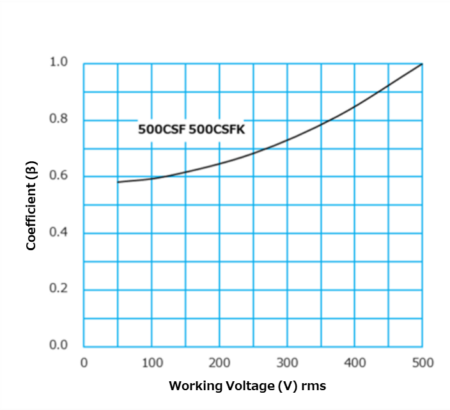

Shutdown I²t Against Working AC Voltage

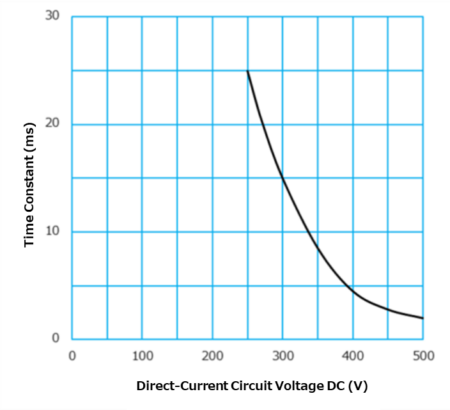

Application to Direct-Current Circuit
