1000CF
Back to Products
Features
- 800V DC prepared for the regeneration voltage of 400V servos/inverters.
- Designed for small-capacity power-supply lines of a high-voltage inverter.
Rating
- Rated voltage and blocking capacity
- AC1000V-100kA
DC800V-100kA(L/R=10ms) - Minimum block-off current
- 1000V AC / 800V DC – 4 times the rated amperage
- Maximum arc voltage
- 2000V
- Read “FOR SAFE USE” and “PROTECT FUSE USER’S GUIDE” at the back of this catalog before use.
- A small fuse may generate a relatively large amount of heat, so a fuse with sufficient capacity is recommended for long, continuous use.
- Fusing indication function is not provided.
PDF Download Rated Voltage
1000V
Rated Current
5～35A
Cylinder Size(Estimated)
φ15×67
Installation Method
Clipped
RoHS Order
◯
Standard Approved

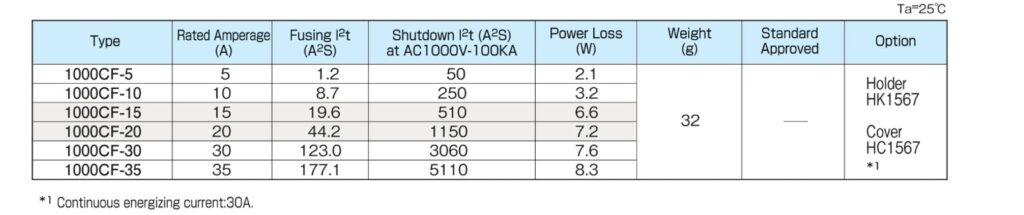

Specifications
Dimensions
1000CF
HK1567 (option)

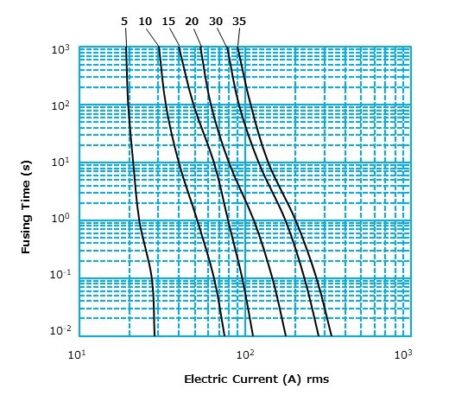

Fusing Characteristics

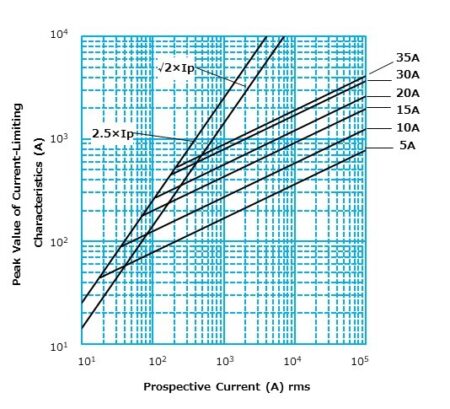

Current-Limiting Characteristics

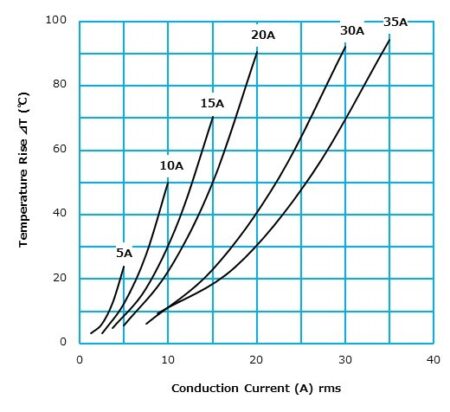

Temperature Rise
Power Loss

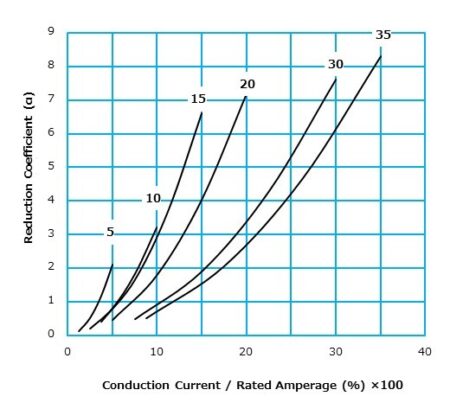

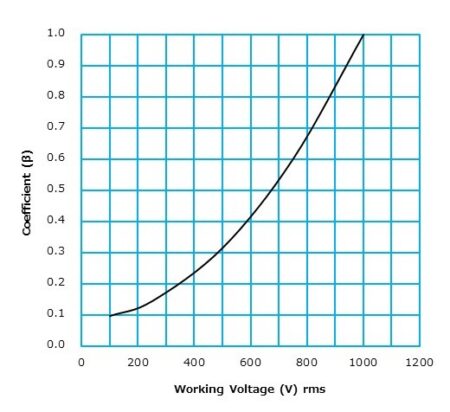

Shutdown I²t Against Working AC Voltage

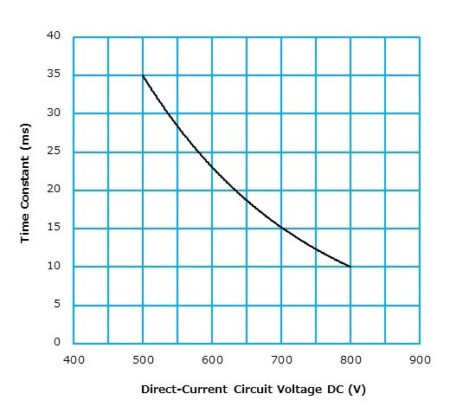

Application to Direct-Current Circuit
