1000VGH
Back to Products
Features
- Compact series added to 1000V fuses lineup. Contributing to space saving.
- Volume ratio Series maximum: 77% downsizing(100A) *Series average:30% downsizing realized
- Recognized by UL(No.E143197)
- It is available to attach an alarm indicating fuse (micro switch can be installed).*
Rating
- Rated voltage and blocking capacity
- 【16～100A】
AC1000V-100kA
DC1000V (L/R 0.5ms) - 100kA
【125～350A】
AC1000V-100kA
DC1000V (L/R 1.0ms) - 100kA
【400～500A】
AC1000V-100kA
DC1000V (L/R 1.5ms) - 100kA - Minimum block-off current
- 1000V AC/DC – 8 times the rated current
- Maximum arc voltage
- 2100V
- Read “PROTECT FUSE USER’S GUIDE” and “FOR SAFE USE” at the back of this catalog before use.
- When purchasing a product with an Alarm indicating Fuse, enter “S” immediately after the ampere rating in the product name (e.g. 1000VGH016S).
- The minimum working voltage of the alarm fuse is 10 V.
1000VGH
PDF Download UL standard approved rating
- Rated voltage and blocking capacity
- Same as the standard rating
CCC standard approved rating
- Rated voltage and blocking capacity
- When applying the standard to CCC standard approved items, use the fuse in the following rating.
AC1000V-50kA
DC800V-50kA(L/R10ms)
Rated Voltage
1000V
Rated Current
16～500A
Cylinder Size(Estimated)
φ18×66～
Installation Method
Screwed
RoHS Order
◯
Standard Approved

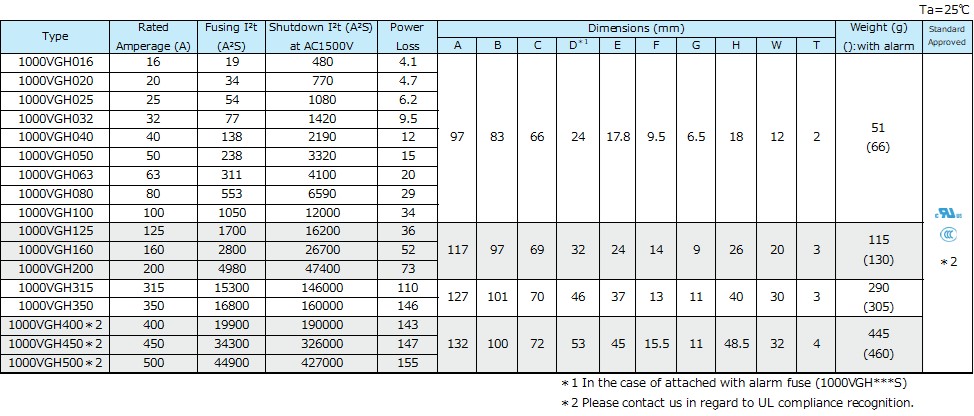

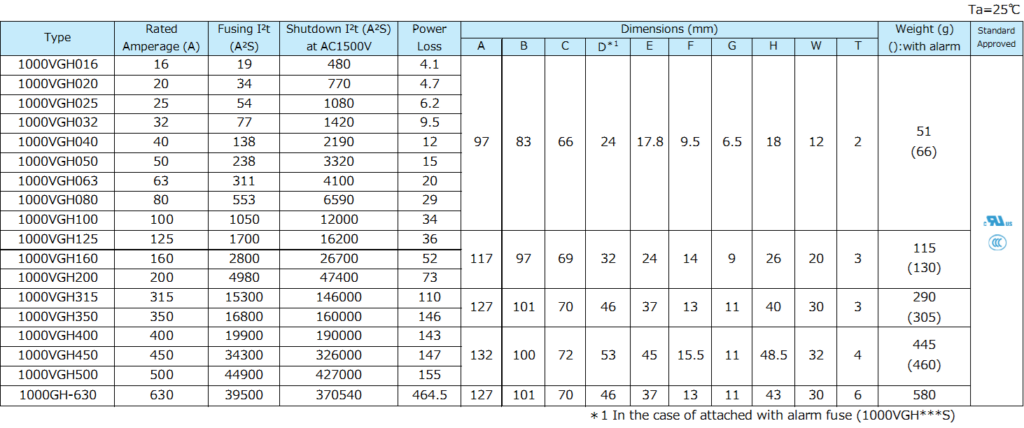

Specifications

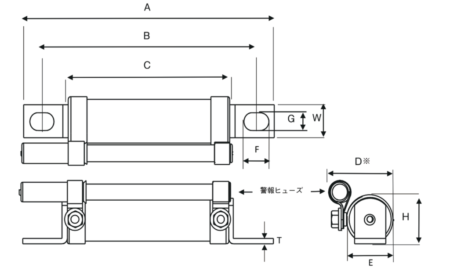

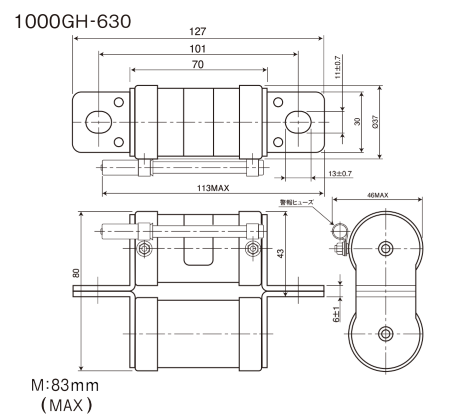

Dimensions

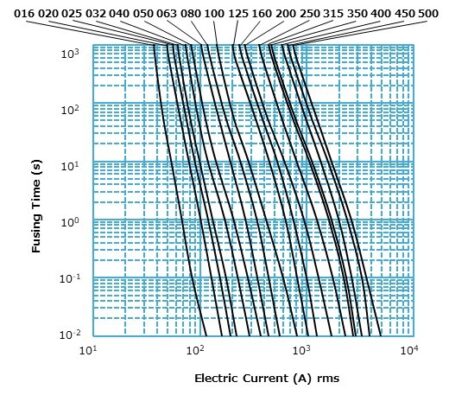

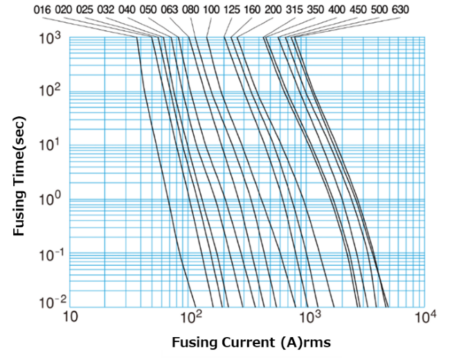

Fusing Characteristics

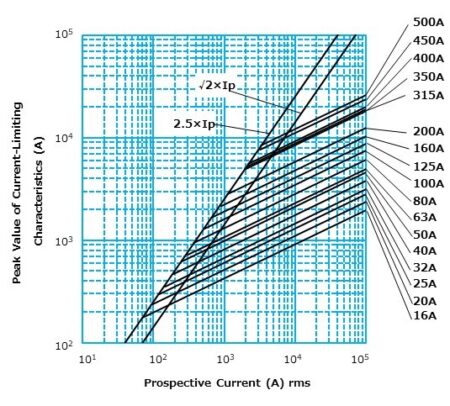

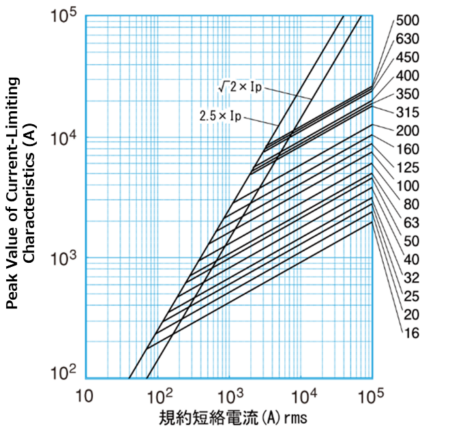

Current-Limiting Characteristics

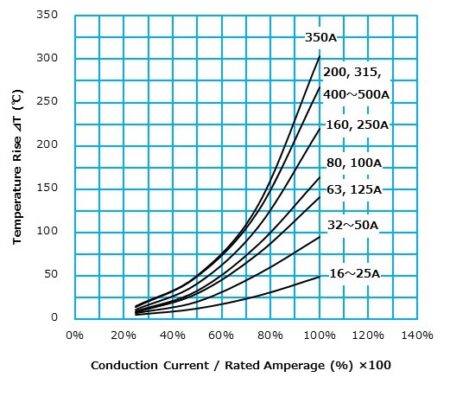

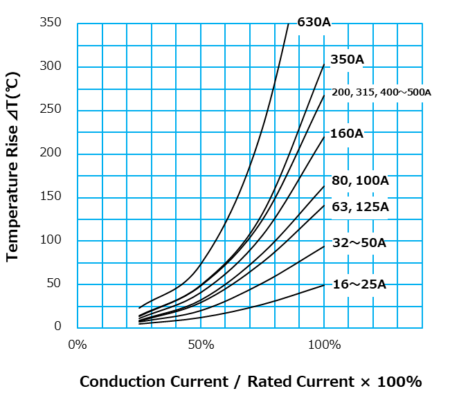

Temperature Rise

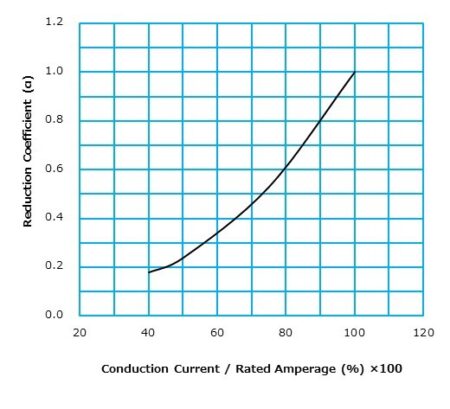

Power Loss

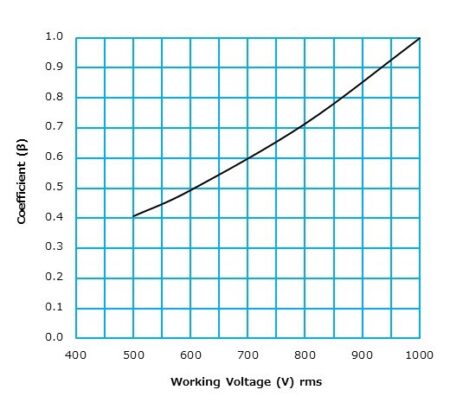

Shutdown I²t Against Working AC Voltage

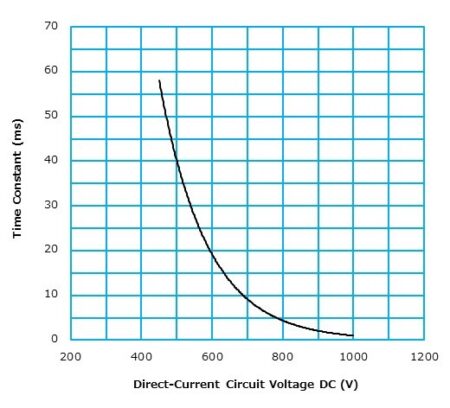

Application to Direct-Current Circuit
