1500GH
Back to Products
Features
- Low-cost, slim tubular fuses for 1500V
- Ideal for energy storage systems and high voltage controls panels equipment requiring high voltages.
- It is available to attach an alarm indicationg fuse (micro switch can be installed).*
Rating
- Rated voltage and blocking capacity
- AC1500V-100kA
DC1500V(L/R2ms)-100kA - Minimum block-off current
- AC1500V / DC1500V – 8 times the rated amperage
- Maximum arc voltage
- 4000V
- Read “PROTECT FUSE USER’S GUIDE” and “FOR SAFE USE” at the back of this catalog before use.
- When purchasing a product with an Alarm indicating Fuse, enter “S” immediately after the ampere rating in the product name (e.g. 1500GH-016S).
- The minimum working voltage of the alarm fuse is 20 V.
1500GH
PDF Download UL standard approved rating
- Rated voltage and blocking capacity
- Same as the standard rating
CCC standard approved rating
- Rated voltage and blocking capacity
- When applying the standard to CCC standard approved items, use the fuse in the following rating.
AC1500V-50kA
DC1200V(L/R10ms)-50kA
Rated Voltage
1500V
Rated Current
16～720A
Cylinder Size(Estimated)
φ20×107～
Installation Method
Screwed
RoHS Order
◯
Standard Approved
Specifications

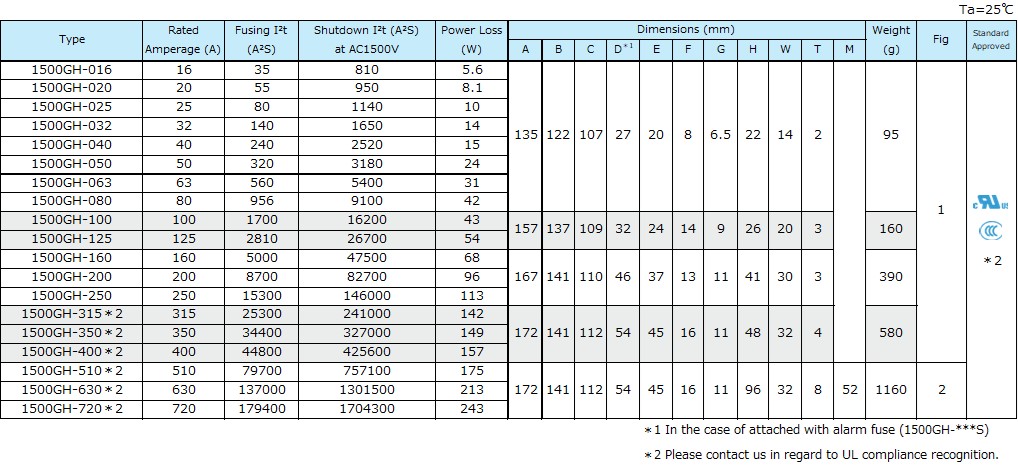

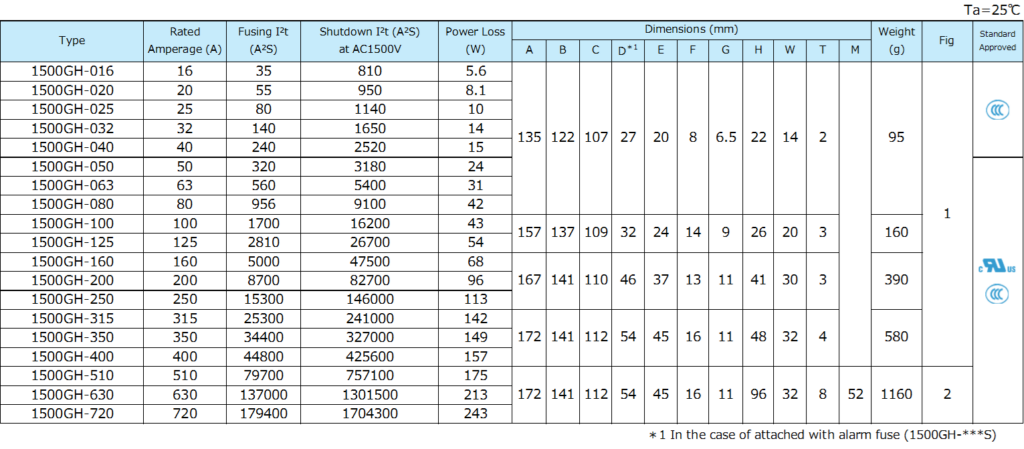

Dimensions
<Fig1>
<Fig2>

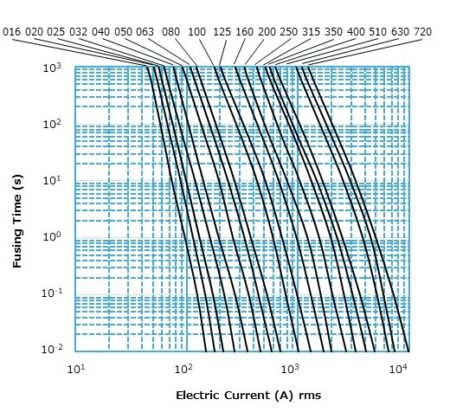

Fusing Characteristics

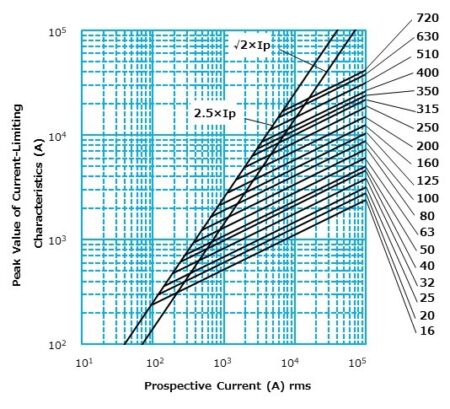

Current-Limiting Characteristics

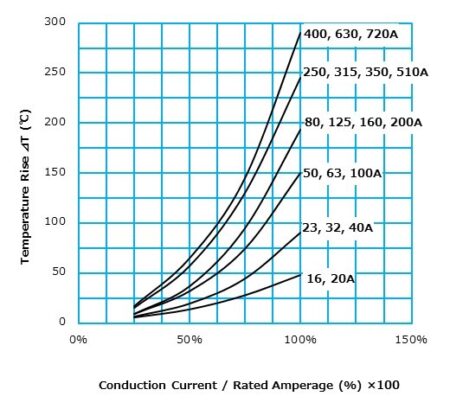

Temperature Rise
Power Loss

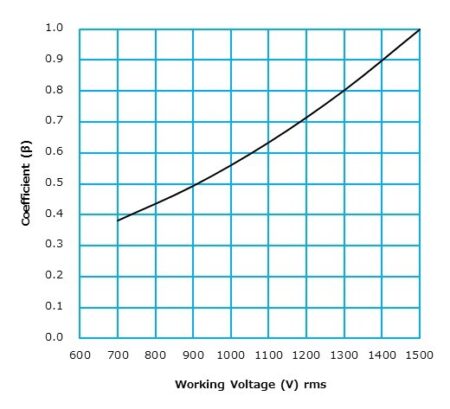

Shutdown I²t Against Working AC Voltage

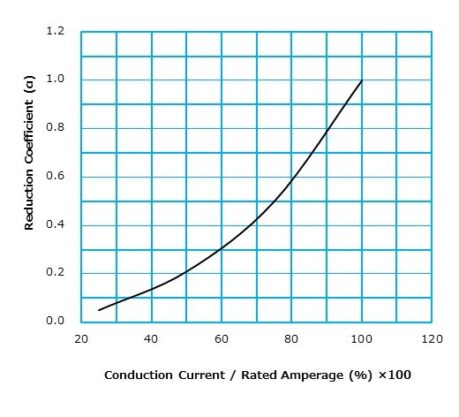

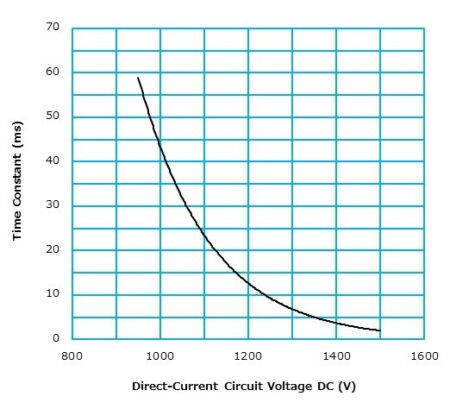

Application to Direct-Current Circuit
