500KFF/500KFH/500KFK
Back to Products
Features
- LOW-HEAT, COMPACT, FAST-ACTING FUSES
- Suitable for built-in quick charger connectors, etc,or including protective coordination with cable short-circuit withstand capacity.
- Also suitable for requirement which needs low heat.
- Cylinder size φ10X38mm, 35A current flow ⊿T50℃ or less has been achieved (*). (*Ambient temperature:25℃)
- It is available to use both AC/DC
- Three types are available according to the type of assembly: Holder (HK1038 mountable) type, Screw-mounted type and Board-mounted type.
Rating
- Rated voltage and blocking capacity
- AC/DC500V-30kA
DC500V-30kA(L/R=0.4ms) - Minimum block-off current
- 2000A
PDF Download Rated Voltage
500V
Rated Current
50A
Cylinder Size(Estimated)
φ10×38
Installation Method
Clipped / Screwed / Board soldered
RoHS Order
◯
Standard Approved

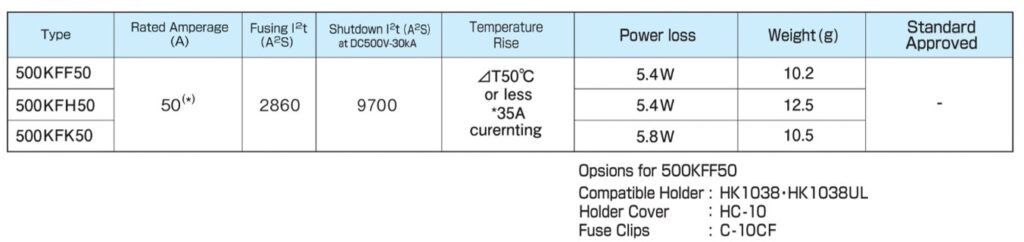

Specifications
Dimensions
500KFF
500KFH
500KFK

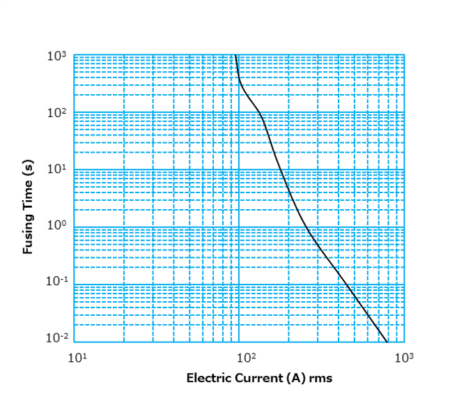

Fusing Characteristics

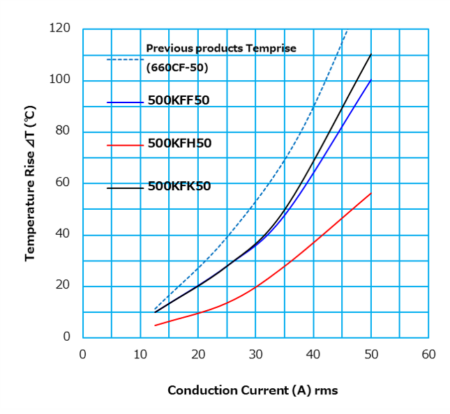

Temperature Rise
