500VSK/500VSH/400VSK
Back to Products
Features
- Compact size enables smaller printed board use for servo, power conditioners and inverters.
- It is realized φ6.6×25mm
- Fast acting and durable
Rating
500VSK / VSH
- Rated voltage and blocking capacity
- AC450V-10kA
DC450V-10kA(L/R=1ms) - Minimum block-off current
- 2 times the rated amperage.
(conditions：DC450V L/R=0.1ms)
400VSK
- Rated voltage and blocking capacity
- AC400V-10kA
DC400V-10kA(L/R=1ms) - Minimum block-off current
- DC300V：6 times the rated amperage(L/R=1ms)
DC400V：16 times the rated amperage(L/R=1ms)
- Read “FOR SAFE USE” and “PROTECT FUSE USER’S GUIDE” at the back of this catalog before use.
- Use the fuse with other protection equipment as there may be a possibility of a restrike arc after fusing if an accidental current in the circuit is below the minimum breaking current.
- Use it at 50% or less of the rated current.
500VSK
500VSH
PDF Download UL standard approved rating
- Rated voltage and blocking capacity
- When applying the standard to UL standard approved items, use the fuse in the following rating.
AC450V 10kA
DC450V 10kA L/R=0.1ms
CCC standard approved rating
- Rated voltage and blocking capacity
- When applying the standard to CCC standard approved items, use the fuse in the following rating.
AC400V 10kA
DC350V 10kA L/R=10ms
Rated Voltage
450V/400V
Rated Current
10～60A
Cylinder Size(Estimated)
φ6.6×24.6
Installation Method
Screwed / Board Soldered
RoHS Order
◯
Standard Approved
Specifications

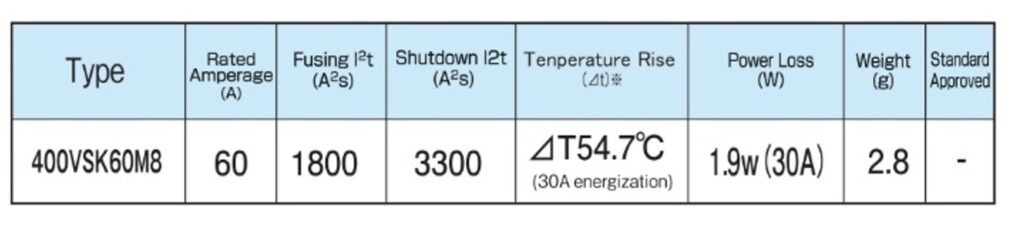

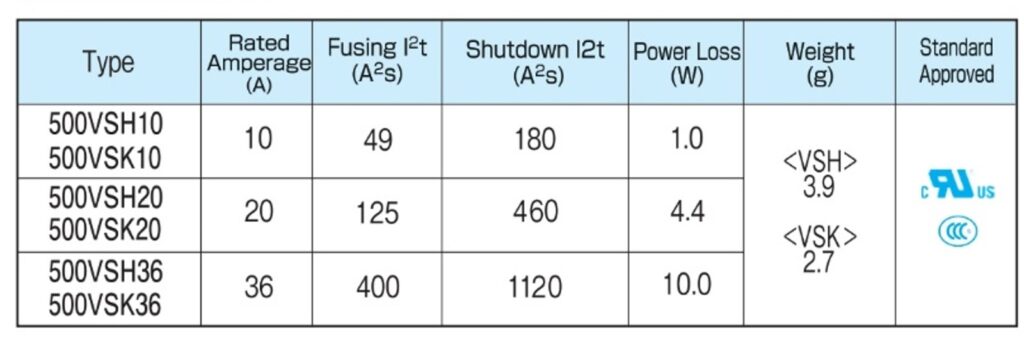

Dimensions
500VSK
500VSH
400VSK

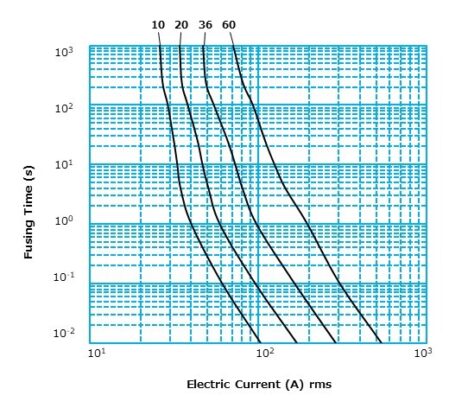

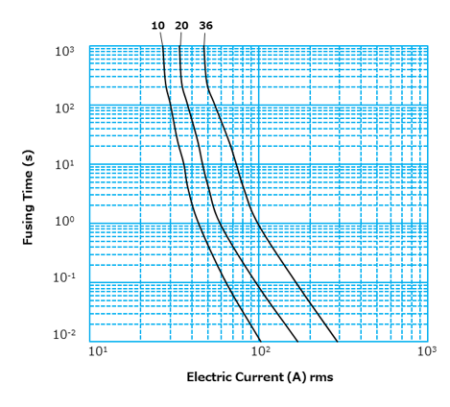

Fusing Characteristics

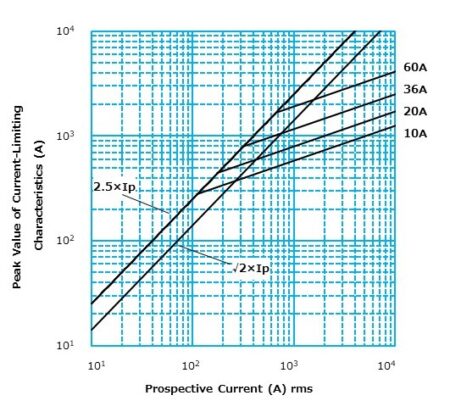

Current-Limiting Characteristics

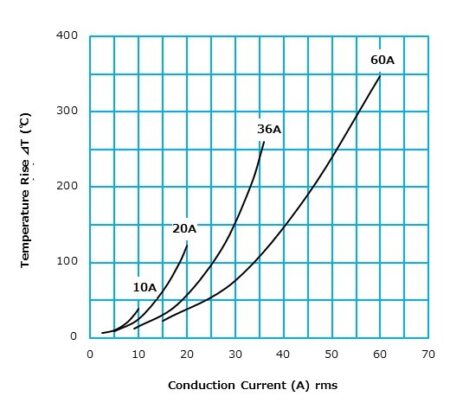

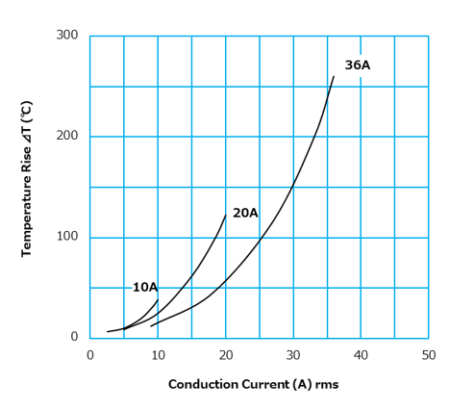

Temperature Rise

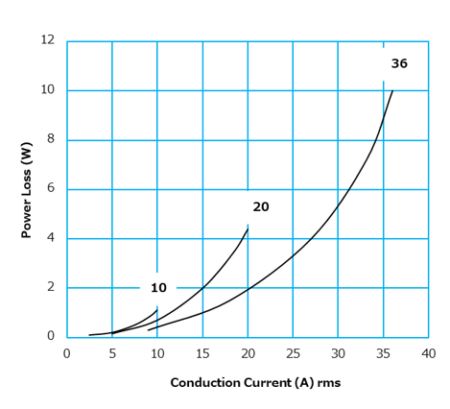

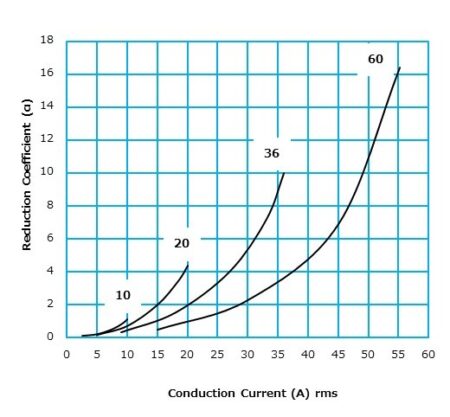

Power Loss
