660GH
Back to Products
Features
- It is available to attach an alarm indicating fuse(microswitch can be installed).
- It is also effective as a fuse with high blocking performance for systems operating at 200V.
Rating
- Rated voltage and blocking capacity
- AC660V-100kA
DC660V(L/R10ms)-100kA - Minimum block-off current
- 660V AC/DC – 5 times the rated amperage
- Maximum arc voltage
- 1400V
- Read “FOR SAFE USE” and “PROTECT FUSE USER’S GUIDE” at the back of this catalog before use.
- When purchasing a product with an Alarm indicating Fuse, enter “S” immediately after the ampere rating in the product name (e.g. 660GH-100S).
- The minimum working voltage of the alarm fuse is 10 V.
660GH-040
660GH-315
PDF Download UL standard approved rating
- Rated voltage and blocking capacity
- Same as the standard rating
CCC standard approved rating
- Rated voltage and blocking capacity
- When applying the standard to CCC standard approved items, use the fuse in the following rating.
660V AC–50kA
450V DC (L/R = 10ms)–50kA
Rated Voltage
660V
Rated Current
16～710A
Cylinder Size(Estimated)
φ17×46～
Installation Method
Screwed
RoHS Order
◯
Standard Approved
Specifications

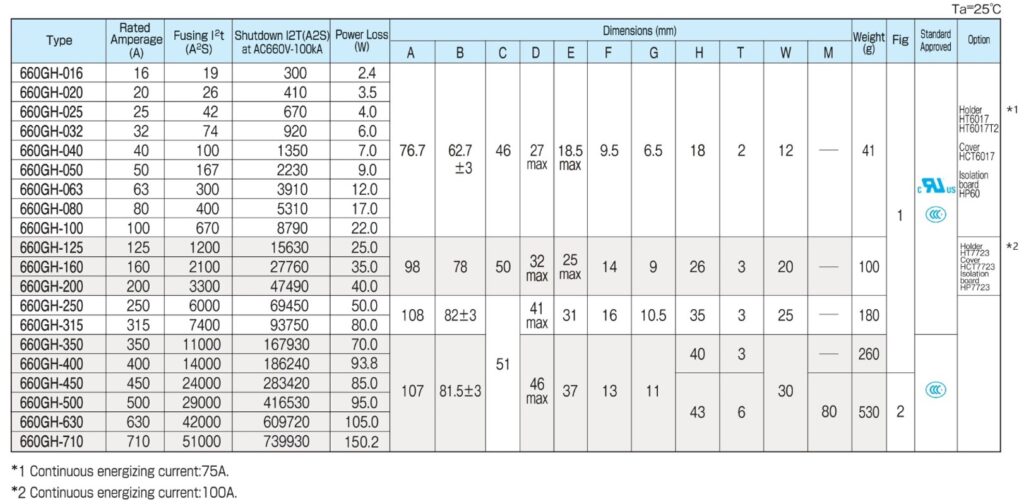

Dimensions
<Fig1>
<Fig2>
※HT6017 (option)
※HT7723 (option)

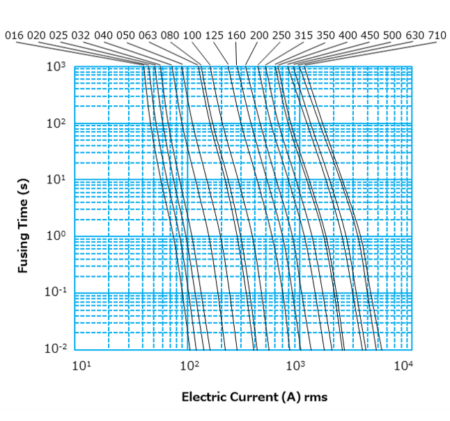

Fusing Characteristics

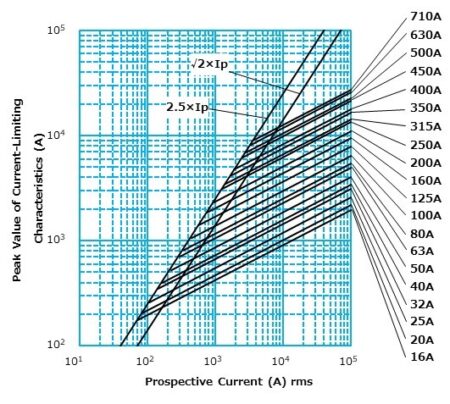

Current-Limiting Characteristics

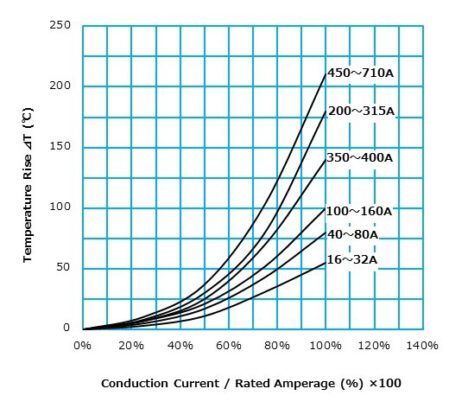

Temperature Rise

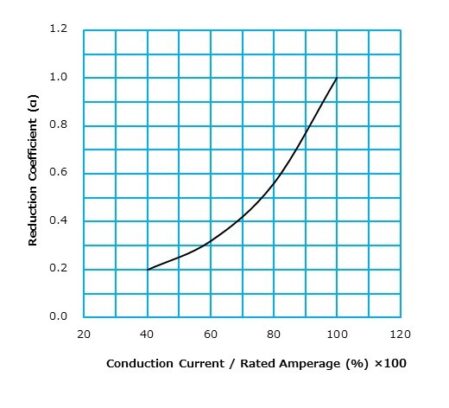

Power Loss

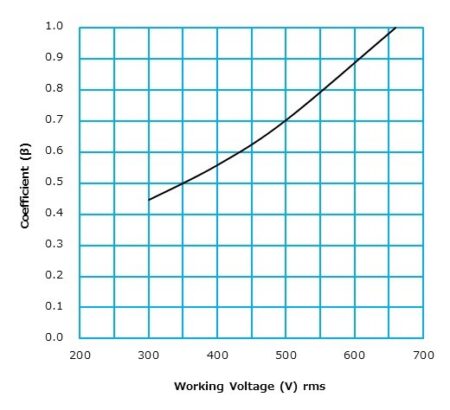

Shutdown I²t Against Working AC Voltage

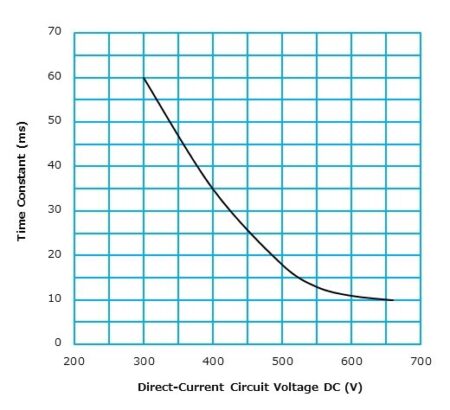

Application to Direct-Current Circuit
