700CF/800CF
Back to Products
Features
- 800V DC prepared for the regeneration voltage of 400V servos/inverters.
- Designed for small-capacity power-supply lines of a high-voltage inverter.
Rating
800CF-5～30
- Rated voltage and blocking capacity
- AC700V-100kA
DC800V(L/R10ms)-10kA - Minimum block-off current
- 700V AC/800V DC – 4 times the rated amperage
- Maximum arc voltage
- 1600V
700CF-35～40
- Rated voltage and blocking capacity
- AC700V-100kA
DC700V(L/R10ms)-100kA - Minimum block-off current
- 700V AC/DC – 4 times the rated amperage
- Maximum arc voltage
- 1400V
- Read “FOR SAFE USE” and “PROTECT FUSE USER’S GUIDE” at the back of this catalog before use.
- A small fuse may generate a relatively large amount of heat, so a fuse with sufficient capacity is recommended for long, continuous use.
- Fusing indication function is not provided.
700CF
PDF Download UL standard approved rating
800CF-5～30
- Rated voltage and blocking capacity
- When applying the standard to UL standard approved items, use the fuse in the following rating.
AC660V-10kA
DC800V(L/R10ms)-10kA
Rated Voltage
700V / 800V
Rated Current
5～40A
Cylinder Size(Estimated)
φ15×51
Installation Method
Clipped
RoHS Order
◯
Standard Approved

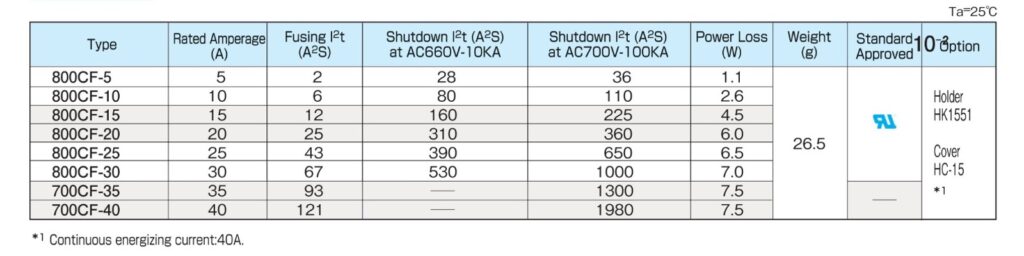

Specifications
Dimensions
700CF/800CF
HK1551 (option)

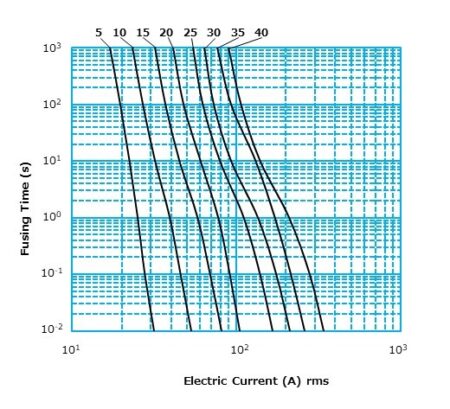

Fusing Characteristics

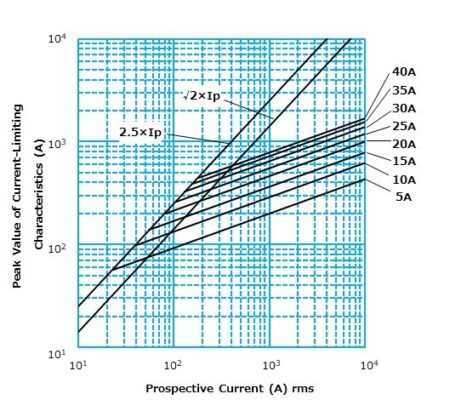

Current-Limiting Characteristics

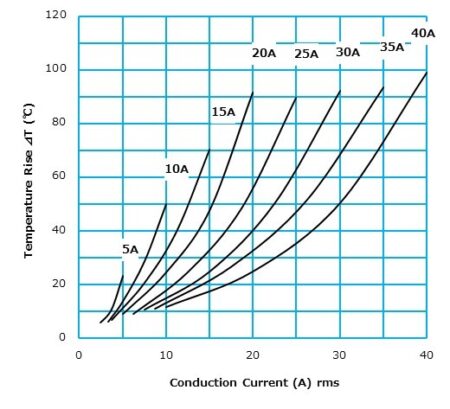

Temperature Rise

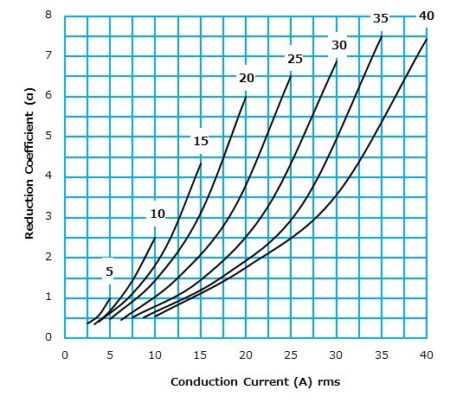

Power Loss

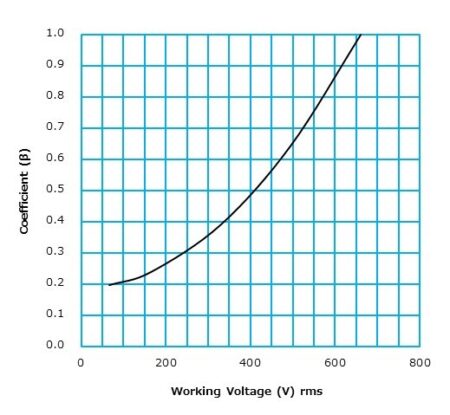

Shutdown I²t Against Working AC Voltage

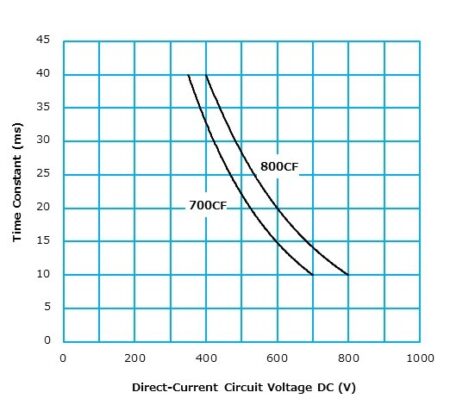

Application to Direct-Current Circuit
