- 750GHK series is a substrate-mounted fuse, effectively reducing power and space requirements. (Suitable for inverter, UPS, power supply use)
- High voltage (AC850 DC750) -Same fuse size as 660GHK series-
Rating
- Rated voltage and blocking capacity
- AC850V-10kA
DC750V-10kA(L/R2ms) - Minimum block-off current
- 850V AC/750V DC‒8 times the rated amperage
- Maximum arc voltage
- 1700V
- Read “PROTECT FUSE USER’S GUIDE” and “FOR SAFE USE” at the back of this catalog before use.
- Fuse should be used less than 50% of their rated current.
- Arc re-ignition may occur if the fusing current is less than 8 times larger than the fuse.
- The power loss and the temperature characteristics are studied using an FR-4 board (one-side board) and a 35-μm-thick copper foil with a copper foil width of 2mm/A depending on the rated amperage (e.g.50mm width for a product rated at 100A).
750GHK
PDF Download UL standard approved rating
- Rated voltage and blocking capacity
- Same as the standard rating
CCC standard approved rating
- Rated voltage and blocking capacity
- When applying the standard to CCC standard approved items, use the fuse in the following rating.
AC850V-50kA
DC600V-50kA(L/R10ms)
Rated Voltage
850V
Rated Current
50～100A
Cylinder Size(Estimated)
φ17×44
Installation Method
Board soldered
RoHS Order
◯
Standard Approved
Specifications

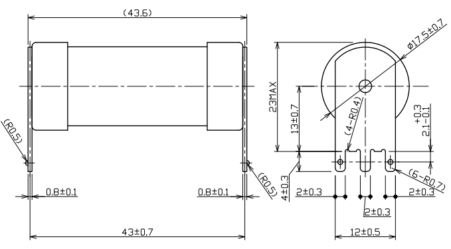

Dimensions

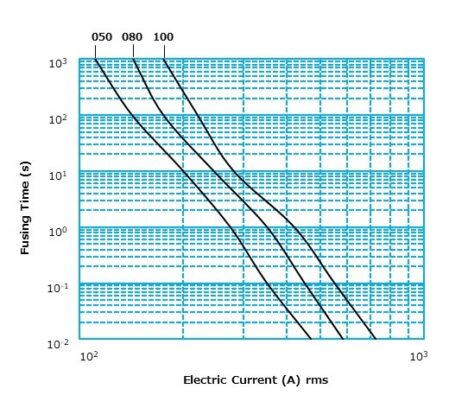

Fusing Characteristics

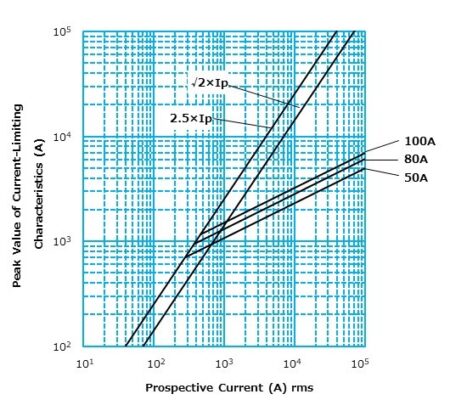

Current-Limiting Characteristics

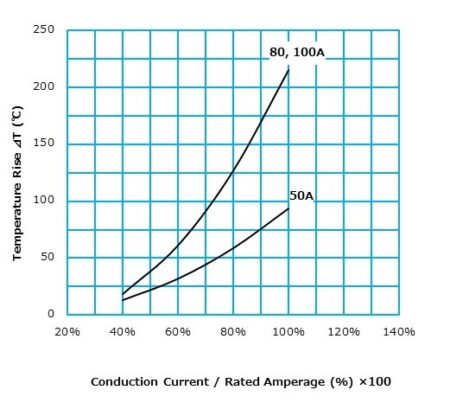

Temperature Rise

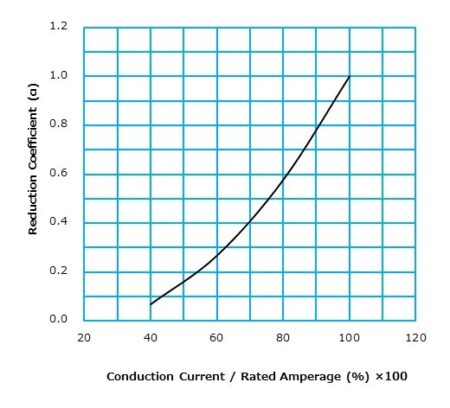

Power Loss
