HK0631
Back to Products
Features
- 500V rated insulation voltage
- DIN rail or direct placement options available.
- Fuse cover use allows for easy and safe placement of fuses
PDF Download Rated Voltage
500V
Rated Current
15A *1
Installation Method
DIN rails and direct installation
Applicable Wires
Up to 5.5mm² (M4)
Applicable fuses
φ6.4×31mm
(Series 250SF/500SF*2)
Material
PBT(body)
UL Approved Product
Option
Holder cover HC06

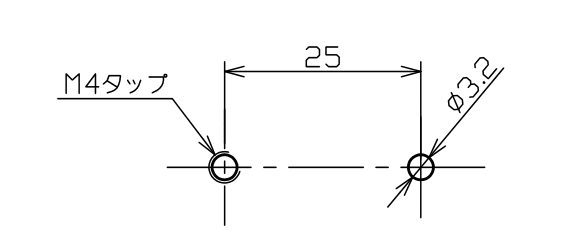

Installing Hole Size
The holder should be inserted from the side when installing it to a DIN rail.
Dimensions
HK0631+HC06
