HK1038 / HK1038UL
Back to Products
PDF Download Rated Voltage
700V
Rated Current
30A
Installation Method
DIN rails and direct installation
Applicable Wires
Up to 8mm² (M5)
Applicable fuses
JIS MF01 [φ10.3×38mm]
(Series 660CF *2)
Material
PBT(body)
UL Approved Product
Option
Holder cover HC-10

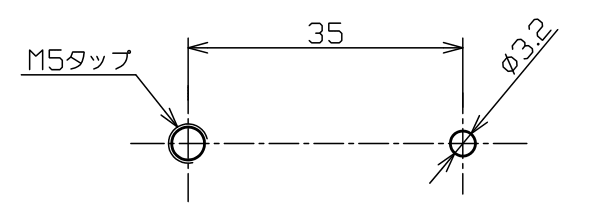

Installing Hole Size
The holder should be inserted from the side when installing it to a DIN rail.
Dimensions
HK1038/HK1038UL + HC-10
