HT4017 / HT4017T2
Back to Products
PDF Download Rated Voltage
400V
Rated Current
75A *1
Installation Method
DIN rails and direct installation
Applicable Wires
Up to 22mm² (M6)
Applicable fuses
250GH-020～125
350GH-016～100 *2
Material
PBT(body)
UL Approved Product
Option
Holder cover HCT4017
Isolation board HP40

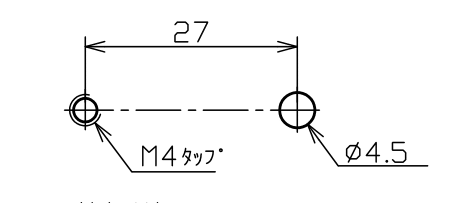

Installing Hole Size
The holder should be inserted from the side when installing it to a DIN rail.
Dimensions
HT4017+HCT4017
HT4017T2
HP40
