HT6017 / HT6017T2
Back to Products
PDF Download Rated Voltage
HT6017：750V
HT6017T2：660V *2
Rated Current
75A *1
Installation Method
DIN rails and direct installation
Applicable Wires
Up to 22mm²(M6)
Applicable fuses
660GH-016～100
750GH-020～100 *2
Material
PBT(body)
UL Approved Product
Option
Holder cover HCT6017
Isolation board HP60

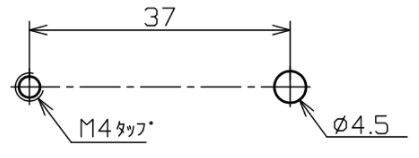

Installing Hole Size
The holder should be inserted from the side when installing it to a DIN rail.
Dimensions
HT6017+HCT6017
HT6017T2
HP60
