HTM06 / HTM08
Back to Products
Features
- Supports 1500V rated voltage
- Suitable for generic applications
PDF Download Rated Voltage
1500V
Rated Current
60A/100A
Installation Method
Direct installation
Applicable Wires
Up to 22mm² (M6) / UP to 38mm² (M8)
Applicable fuses
Please see the table below
Material
PBT(body)
UL Approved Product
Option
Installing Hole Size

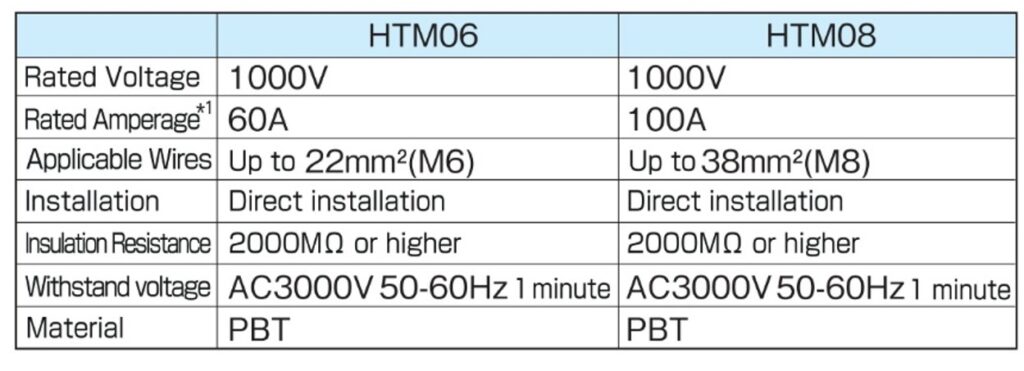

Specifications
Dimensions
HTM06
HTM08

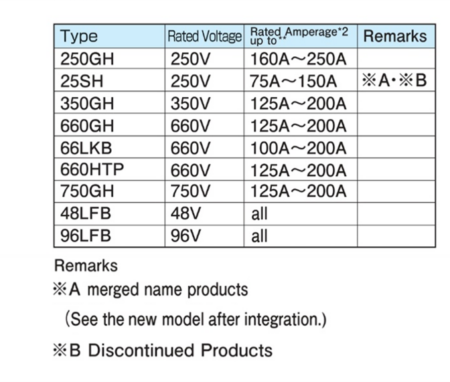

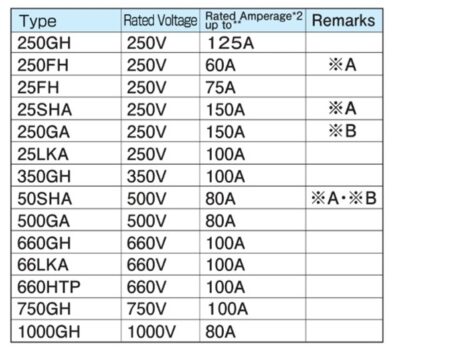

Applicable fuses
HTM06
HTM08
