1000GH
Back to Products
Features
- It is available to attach an alarm indicating fuse(microswitch can be installed).
- Low-cost cylindrical fuse that is compliant to 1000V.
- It is also effective as a fuse with high blocking performance for systems operating at 400V.
Rating
- Rated voltage and blocking capacity
- AC1000V-100kA
DC1000V(L/R3ms)-100kA - Minimum block-off current
- 1000V AC/DC – 6 times the rated amperage
- Maximum arc voltage
- 2000V
- Read “PROTECT FUSE USER’S GUIDE” and “FOR SAFE USE” at the back of this catalog before use.
- When purchasing a product with an Alarm indicating Fuse, enter “S” immediately after the ampere rating in the product name (e.g. 1000GH-100S).
- The minimum working voltage of the alarm fuse is 10 V.
1000GH-100
1000GH-400
PDF Download UL standard approved rating
- Rated voltage and blocking capacity
- Same as the standard rating
CCC standard approved rating
- Rated voltage and blocking capacity
- When applying the standard to CCC standard approved items, use the fuse in the following rating.
【16～160A】
AC1000V-50kA
DC800V-50kA(L/R10ms)
【200～630A】
AC1000V-50kA
DC700V-50kA(L/R10ms)
Rated Voltage
1000V
Rated Current
16～630A
Cylinder Size(Estimated)
φ17×66～
Installation Method
Screwed
RoHS Order
◯
Standard Approved

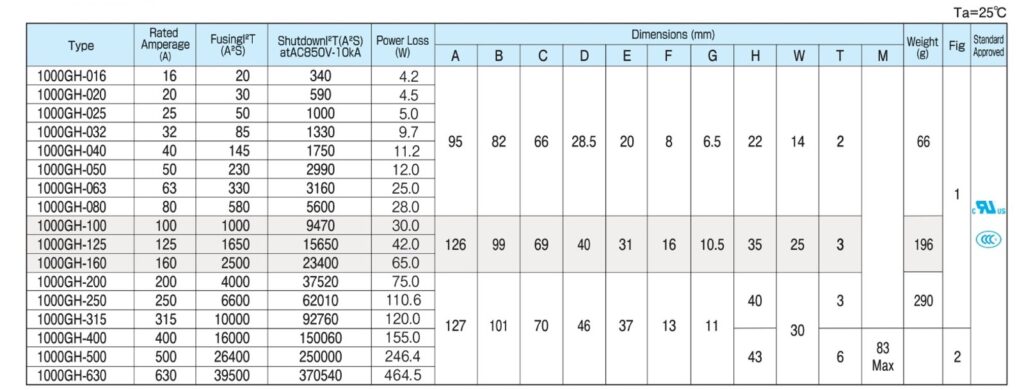

Specifications
Dimensions

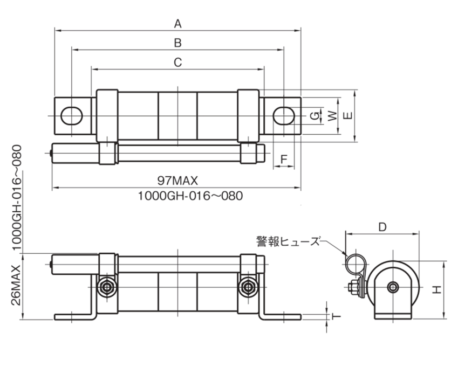

<Fig1>

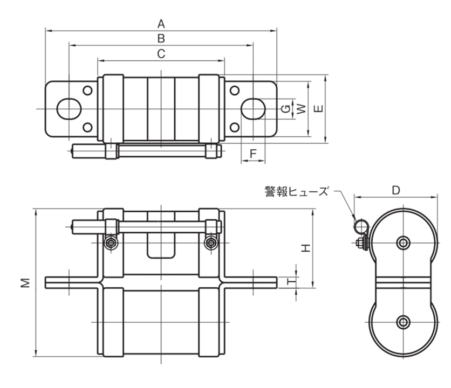

<Fig2>

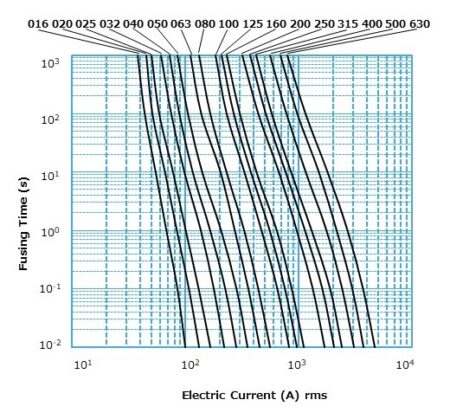

Fusing Characteristics

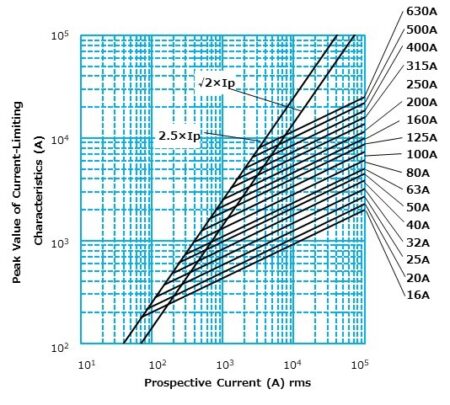

Current-Limiting Characteristics

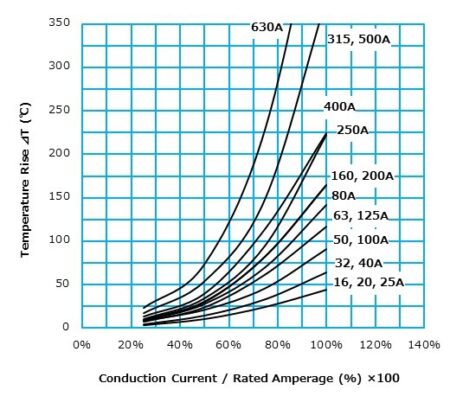

Temperature Rise

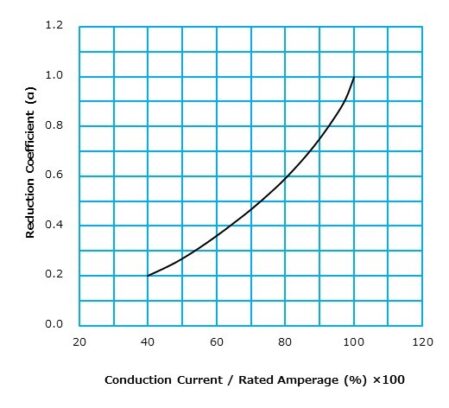

Power Loss

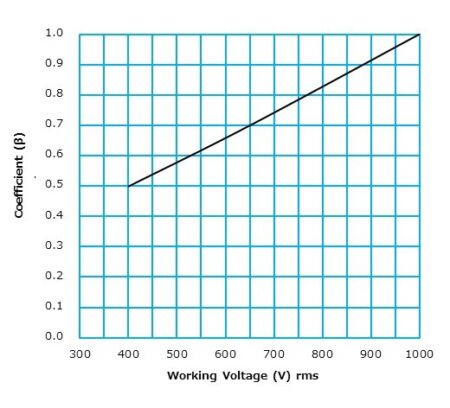

Shutdown I²t Against Working AC Voltage

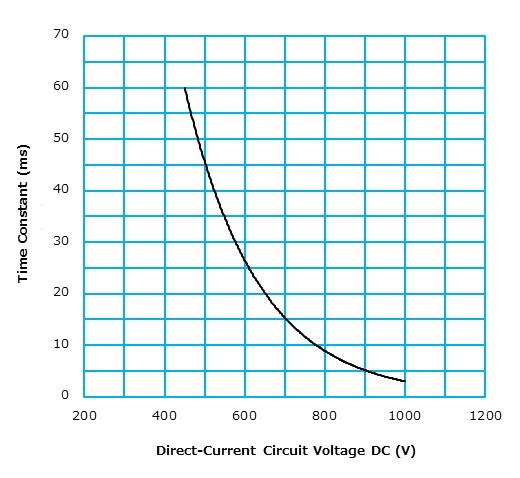

Application to Direct-Current Circuit
