HK1551Back to products

FEATURES

Rated Voltage, 800V
●The fuse holder is convenient for all manner of designs and installation.
●DIN rail or direct placement options available.
●Fuse cover use allows for easy and safe placement of fuses.
●This helps to ensure effective placement.

*1 Available to leave continuously turns on for long durations.

*2 Use at voltage and current values lower than rated of fuse holders.

  • HK1551

Rated voltage Rated amperage *1 Applicable Wires
800V 40A Up to 14mm2 (M5)
Installation Applicable fuses Material
DIN rails and direct installation JIS CF2 [φ15×51mm]
(Series 700CF/800CF*2)
PBT(body)

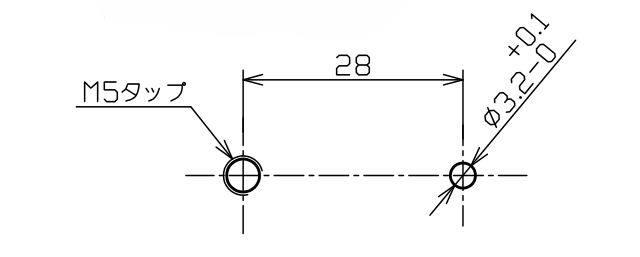

UL Approved Product Option Installing Hole Size
- Holder cover HC-15
