HK1567Back to products
FEATURES
*1 Available to leave continuously turns on for long durations.
*2 Use at voltage and current values lower than rated of fuse holders.
-
HK1567+HC1567
| Rated voltage | Rated amperage *1 | Applicable Wires |
|---|---|---|
| 1000V | 30A | Up to 14㎟(M5) |
| Installation | Applicable fuses | Material |
| DIN rails and direct installation | φ15×67㎜ (Series 1000CF*2) |
PBT(body) |

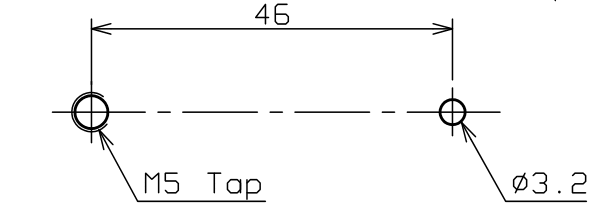

| Name of Approved product | Options | Installing Hole Size |
| - | Holder cover HC1567 |  |
