HT7723Back to products


●Able to withstand use with fuses of up to 800V
●Convenience in connectability and design
●DIN rail or direct placement options available
●Easy connection with thick wiring
●Bolt installation provides stability

*1 Available to leave continuously turns on for long durations.

*2 Use at voltage and current values lower than rated of fuse holders.

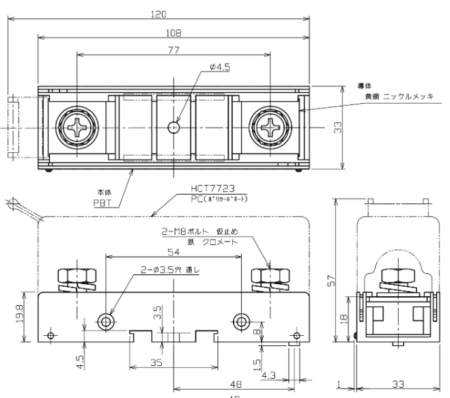

  • HT7723

Rated voltage Rated amperage *1 Applicable wires
800V 100A Up to 38㎟(M8)
Installation Applicable fuses Material
DIN rails and direct installation 660GH 125-200 *2
750GH 125-200 *2

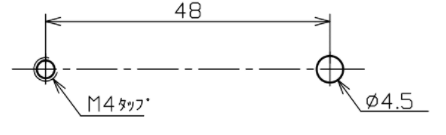

Name of Approved product Option Installing hole size
- Holder cover HCT7723

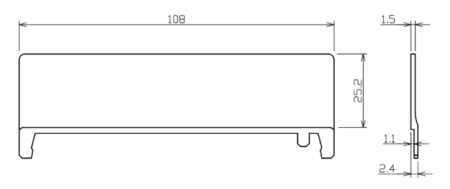

Isolation board HP7723
